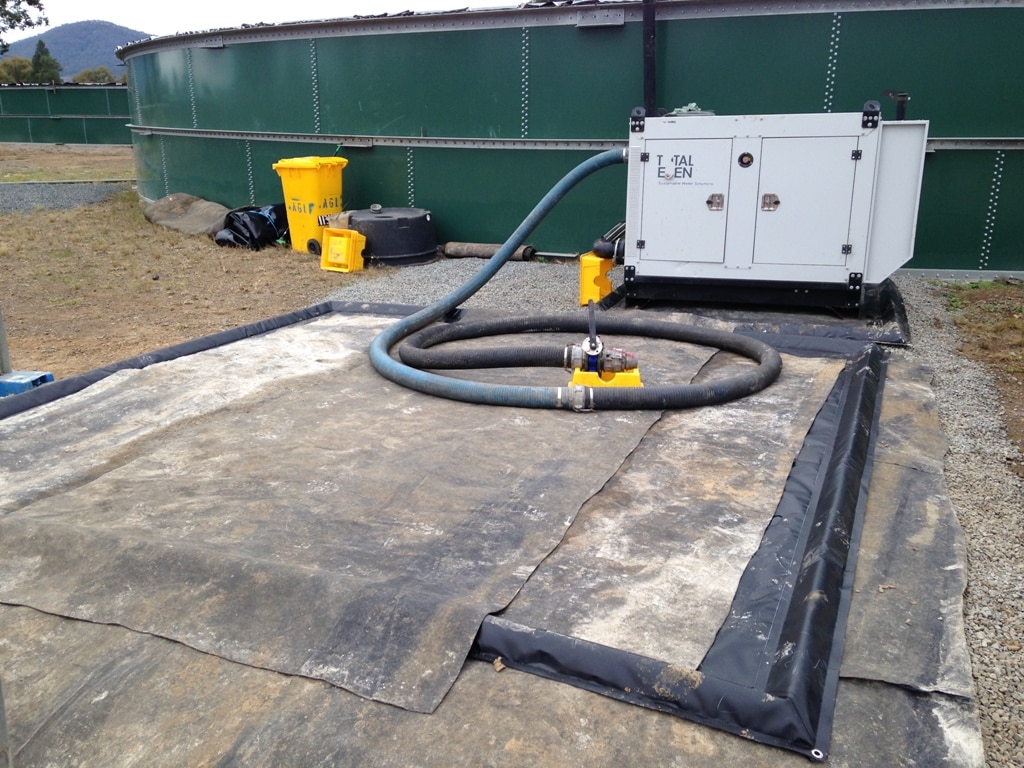

XR-5 Spill bund used as hose laydown for fracking operation
black XR-5 spill bund with equipment

A Spill Bund can be used for the temporary or permanent storage of drums, machines or leaking equipment. For use in both indoor and outdoor settings, they offer easy, manageable and portable incidental spill containment. This spill mat spill containment solution was designed with storage and portability in mind – they are easily rolled for storage allowing you to transport them to your projects. Having a spill bund with you means you will be ready to respond quickly to meet EPA regulations.

Common applications include:

  • temporary drum storage
  • set down for containers of liquids
  • decanting station
  • containment of plant & equipment on work sites
  • storing hydraulic hoses when not in use

Fabricated with heavy duty UV stabilised PVC and high quality memory foam sides, this portable Spill Bund can be easily cleaned and reused over and over again. This product is available in a set of standard sizes and can also be custom manufactured to  meet your specific requirements. All bunds are fabricated with 100mmH walls.

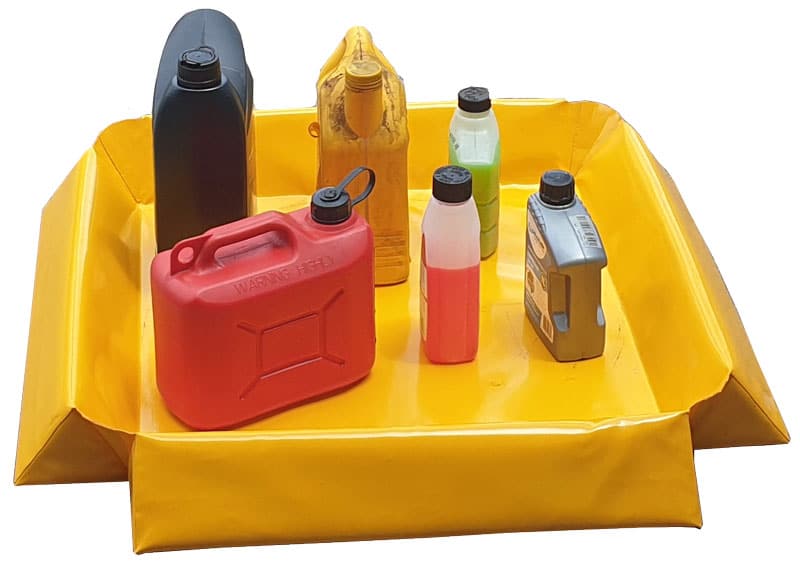

Chatoyer yellow PVC Spill Bund sized 0.6m x 0.6m internal dimensions shown storing a variety of small containers of chemicalsAPCSM1
Product Information

  • Stores 1 Drum
  • Internal 600mm x 600mm
  • External 880mm x 880mm
  • Capacity: 36L

Chatoyer yellow PVC Spill Bund sized 1.2m x 0.6m internal dimensions shown storing 2 blue drumsAPCSM2
Product Information

  • Stores 2 Drums
  • Internal 1200mm x 600mm
  • External 1480mm x 880mm
  • Capacity: 72L

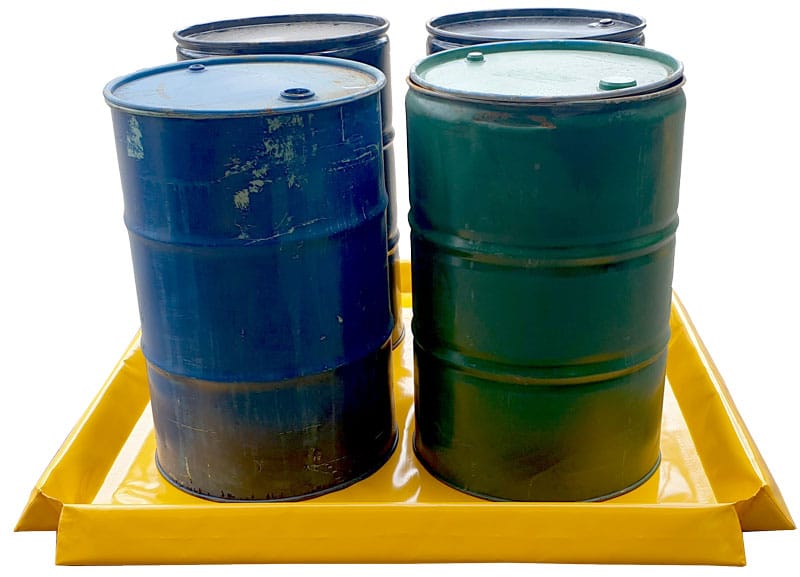

Chatoyer yellow PVC Spill Bund sized 1.2m x 1.2m internal dimensions shown storing 4 blue drumsAPCSM4
Product Information

  • Stores 4 Drums or 1 standard pallet
  • Internal 1200mm x 1200mm
  • External 1480mm x 1480mm
  • Capacity: 144L

Suggestions of common sizes

Suggested Application Internal Dimension
(m)

Capacity (L)
100mmH wall

1 drum 0.6 x 0.6 36
2 drums 1.2 x 0.6 72
4 drums or 1 Pallet or 1 IBC 1.2 x 1.2 144
1.8 x 1.8 324
2.4 x 1.2 288
4 IBCs / 4 pallets 2.4 x 2.4 576
3.6 x 2.4 864
Car 6 x 3 1,800
Truck 18 x 4 7,200

Download our Spill Bund Brochure
Read our Case Study: Custom Portable Bunding
